Set Ventilation System Globally

Shows step-by-step how to set up a ventilation system for your entire project.

Before you begin

You would like to define a project wide ventilation system.

Navigate to:

Module overview ➤ Heat load ➤ Project level ➤ General heat load data

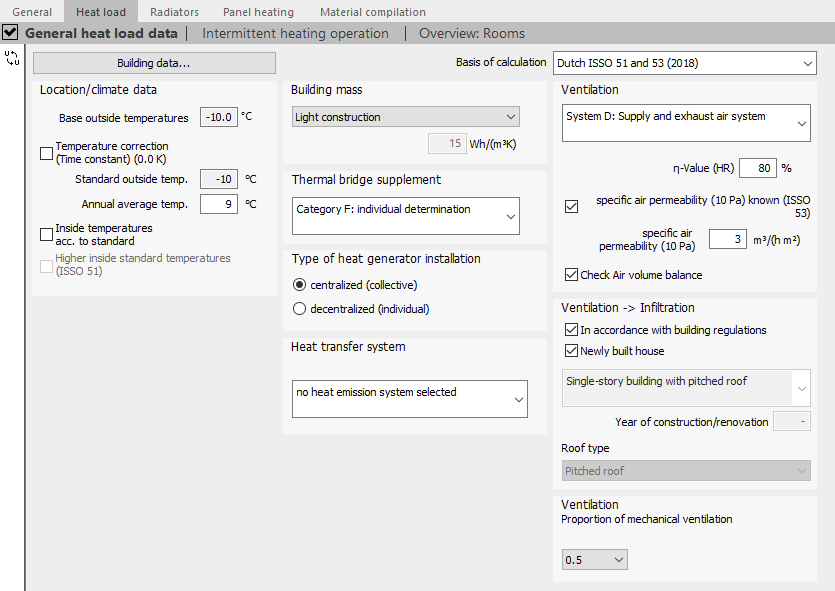

Heating load Linear Building

Procedure

Open the drop-down list under Ventilation and select a ventilation system.
Enter the efficiency η value (HR) for supply or exhaust air systems.
If the Specific air permeability (10 Pa) known is known, activate the option and enter the value.
If you would like to Check air volume balance, activate the option.

Results

The ventilation system for your project is selected and set.
