Assigning internal loads to room groups
Shows step-by-step how you assign internal loads to a room group on project level.
Before you begin
You have created room groups and want to assign internal loads to them at project level.
Navigate to:
Note:
The All rooms room group is available by default and can be used to assign identical internal loads to all rooms in the project.
Procedure

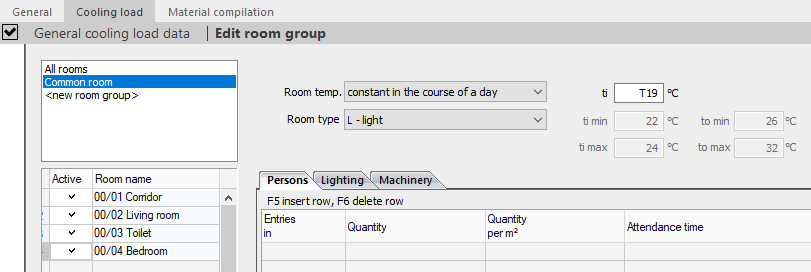

- Select the desired room group from the list of room groups.
- Select the tab of the desired internal load and click in a row of the table.
A new line with sample data for the internal load is inserted.
- Edit the parameters of the internal load as needed.
- Repeat the steps for all occurring internal loads of the project's room groups. Note:
A material throughput can only be assigned at room level.
Results

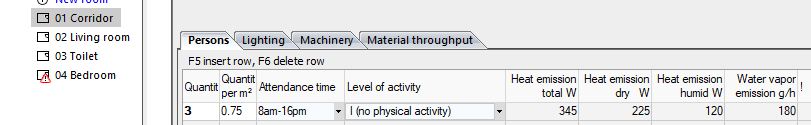

The created internal loads are assigned and displayed in the corresponding rooms.
