Creating Room Groups

Shows step-by-step how to create room groups and assign rooms to these room groups.

Before you begin

You would like to combine rooms with identical load profiles into groups to support load assignment.

Navigate to:

Module overview ➤ Cooling load dynamic ➤ Project level ➤ Assignment of internal loads

Cross-room load assignment Linear Building

Procedure

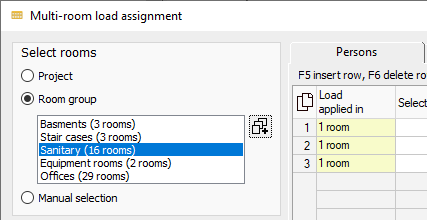

  1. In the Select rooms section, click .

    The Room groups dialog opens.

  2. If necessary, activate Rooms in max. one group per module (new groups only).
  3. In the Room groups dialog, click .
  4. In the next window, enter the name of the new room group and click on OK.
  5. In the building structure shown on the right, activate all rooms that should be included in this room group.
  6. Close the dialog.

Results

The newly created room group appears in the list of room groups and can be used for load assignments.
