Details on Locations

Information on the Locations dialog related to heat load calculation according to SP 60.

You are here:

Module overviewHeat loadProject levelGeneral heat load dataLocations...

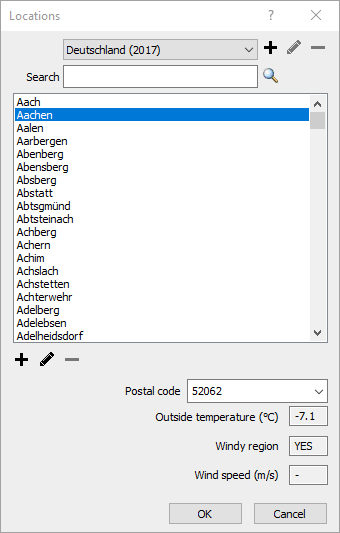

Heat load dialog locations Linear Building

Data set selection

Defines the dataset used. The locations stored in the data set are displayed in the dialog's selection window after the dataset has been selected.

: Opens the Create or edit region/place dialog, in which you can create your own datasets, e.g. for a country or region.

: Opens the Create or edit region/place dialog where you can change the name of the dataset. This button is enabled only for self-created datasets.

: Allows you to delete datasets that you have created yourself.

Search

In the Search field you can search for locations in the dataset. To do this, enter the name or part of the name of the place you are looking for.

Location

List for selection of project location. The list includes all countries for which weather data are available within the Russian heating load standard SP 60.

: Opens the Create or edit region/place dialog where you can add new locations.

: Opens the Create or edit region/place, where you can edit data of the selected location or add more postal code areas for the location.

: Deletes self-created or supplied and edited locations or resets them to the default settings.

Postal code/Windy region

The fields Postal code and Windy region are left blank for locations of the Russian heating load standard SP 60.

Outside temperature (°C)/Wind speed (m/s)

The Outside temperature (°C) and Wind speed (m/s) fields indicate the lower annual temperature limit and wind speed required to determine ventilation heat losses due to infiltration under the Russian heating load standard SP 60.
