Details on Results: Table

Information on the Table tab in the Results section when calculating the cooling load at room level by the abbreviated method.

You are here:

Module overview ➤ Cooling load short procedure ➤ Room level ➤ Results ➤ Table

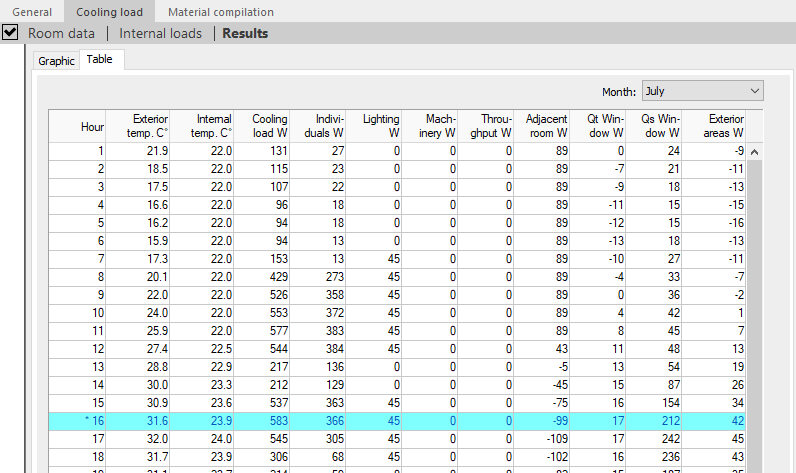

Cooling load table results Linear Building

At room level, depicts the results of the cooling load calculation according to the short procedure in tabular form.

Month: Selection of the design month for which the results are to be displayed.


Column	Description
Hour	Daily time of the design day in the selected month.
Outside air temperature °C	Daily pattern of the exterior air temperature at the selected project site.
Inside air temperature °C	Daily pattern of the inside air temperature of the currently selected room.
Cooling load W	Daily pattern of the total cooling load in the currently selected room.
Individuals W	Inside load caused by persons.
Lighting W	Inside load caused by lighting.
Machinery W	Inside load caused by machinery.
Material throughput W	Inside load caused by material throughput.
Adjacent room W	Cooling load percentage of the heat gains and heat losses at adjacent rooms.
Qt windows W	Cooling load percentage of the heat gains caused by transmission at windows.
Qs windows W	Cooling load component of the heat inputs caused by solar radiation through windows.
Outside surface W	Cooling load percentage of the heat gains caused by solar radiation on exterior areas.
