Details on Heat Load Data in Building Part

Information on the Heat load data on: section Building part.

You are here:

Module overviewHeat loadBuilding structureBuilding part

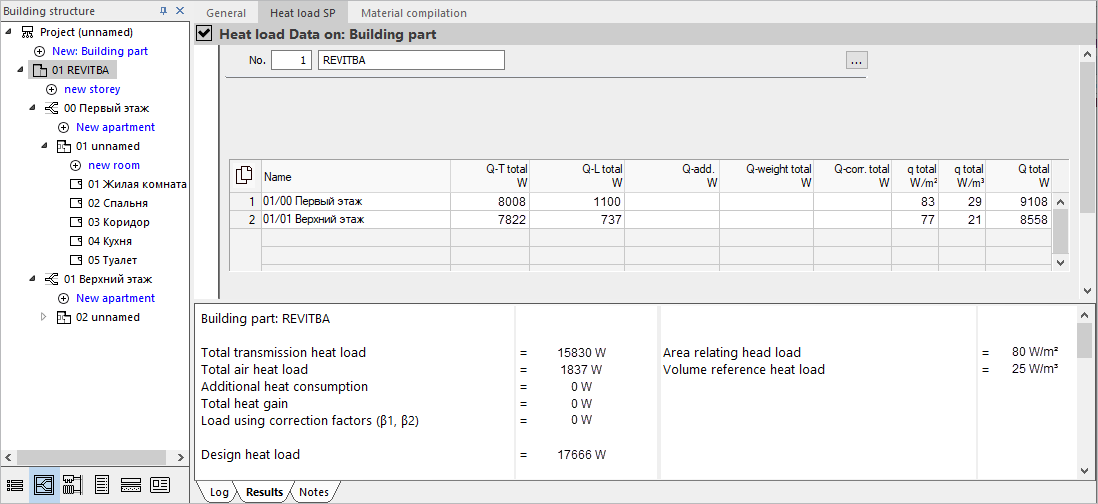

Heat load SP building part Linear Building

General building part data

Defines the number and name of the current building part. Click opens the Data on: Building part, where you can edit number, short name and orientation of the main facade.

Table

The table lists the storeys of this part of the building. The values in this view are only displayed for information and cannot be edited.

By clicking you have the possibility to copy the contents of the table with or without column heading and paste it into Excel.

If you have selected individual rows or cells, you can copy the selected data with the key combinations Ctrl+C (with column heading) or Ctrl+Shift+C (without column heading) and paste it into Excel, for example.

Q-T total

Transmission heat loss

Q-L total

Ventilation heat loss

Q-supplement

Additional heat consumption

Q-weight total

Heat gain

Q-corr. total

Loads from correction factors beta 1 and beta 2

q total [W/m2]

area-related heat load

q total [W/m3]

volume-related heat load

Q total

Total heat load of the storey

Results tab

The heat load determined for this building part, broken down into transmission heat losses, ventilation heat losses and heat gains. Furthermore, area- and volume-related heat loads as well as additional loads due to correction factors are shown. The lowest line contains the design heat load for this building part.
