Details on Editing Capacity Profiles
Information on the Capacity profiles dialog in the dynamic cooling load calculation.
You are here:

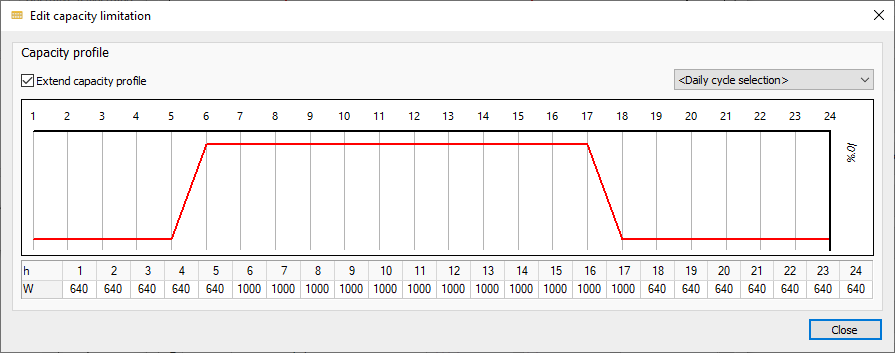

Extend capacity profile - activated: Displays a text box below the diagram for each hour of the day for manually entering a percentage value and activates the Diurnal variation selection drop-down list. In addition, the value can be set by clicking into the diagram and dragging it to the desired value.
Disabled: You can enter a constant percentage value for the overall daily course.
Diurnal variation selection: Drop-down list for selecting predefined performance profiles. The values are transferred to the profile after selection and can be adjusted if necessary.
