Details on Results, Building - Solar Radiation

Information on the Solar radiation tab in the results of the dynamic cooling load calculation for a building.

You are here:

Module overviewDynamic cooling loadProject levelCooling load design resultSolar radiation

Dialog results cooling load dimensioning Linear Building

Diagram

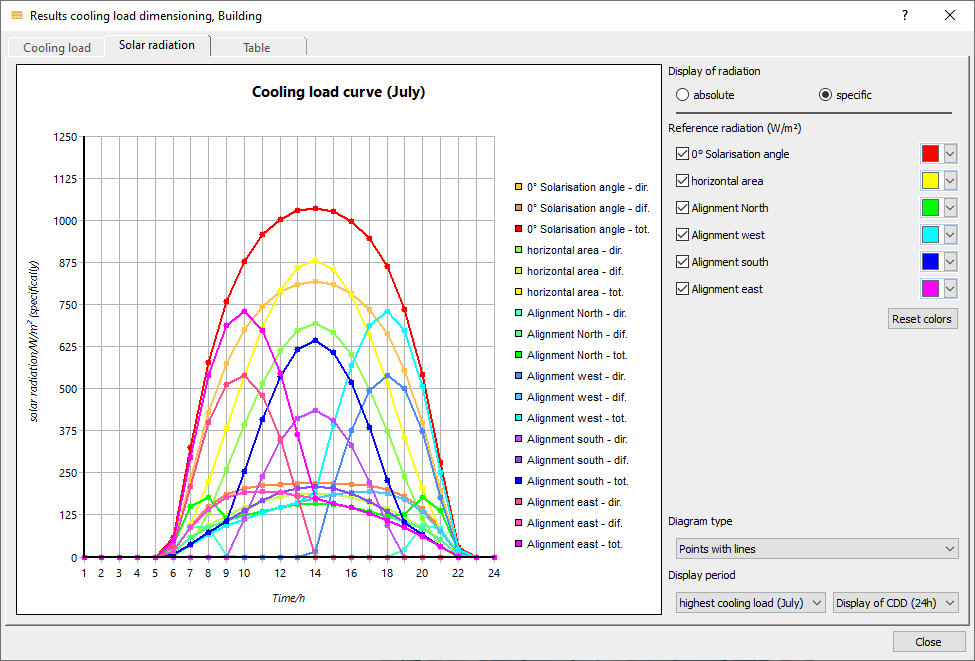

The diagram shows the load curve resulting from solar radiation over the selected display period. For the specific display, the curves for direct, diffuse and total irradiation are shown for each option.

Absolute

If this option is activated, the resulting load from the total irradiation for transparent surfaces and exterior walls can be displayed for the selected display period.

Specific

If this option is activated, the resulting load from the solar irradiation for horizontal surfaces and all cardinal directions can be displayed per square meter of outdoor surface for the selected display period.

Reset colors: Restores the default colors for all displayable curves.

Further displaying options

Diagram type

You can choose from the following options for displaying the diagram:

  • Bar chart

  • Line diagram

  • Points with lines

Display period

From the drop-down list, you can select which design month to use for displaying the cooling load curve. By default, the month with the highest cooling load is always displayed when the result dialogs are opened. Each month can display either the Cooling Design Day or the entire Cooling Design Period.
