Details on year simulation results, building – table
Information on the Table tab in the Year simulation results, building dialog.
The results table of the year simulation provides an overview of the calculation results for each of the design months. The values are only displayed here and cannot be edited.
You are here:
Year drop-down list
You can either have results for each day of the reference test year displayed, or freely define a time period.

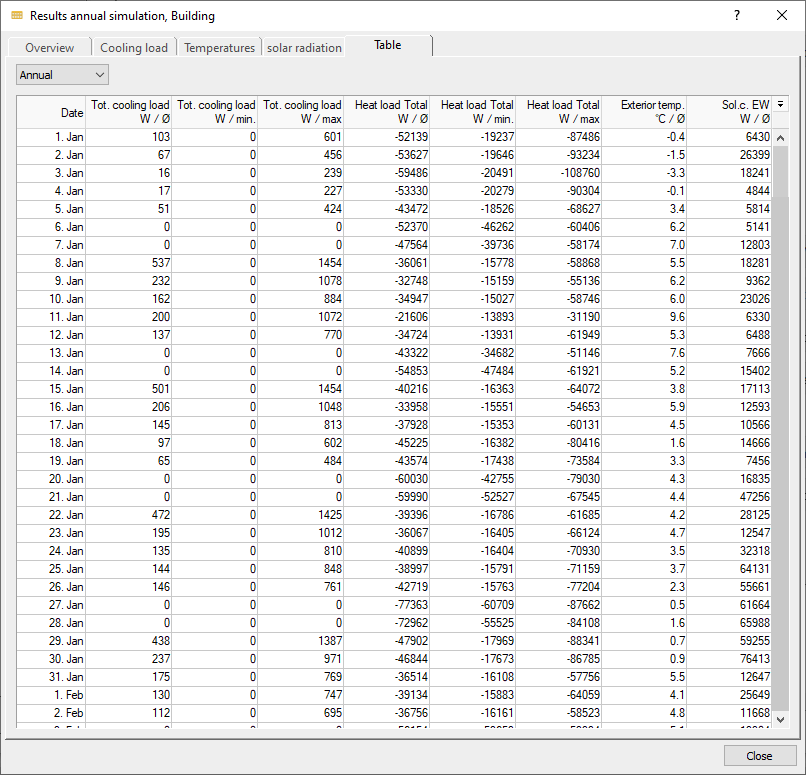

Year results table
| Column | Description |
|---|---|
| Date | Date in TRY for which the respective values of the row were determined. |
| Total cooling/heating load W (Ø, min., max) | Daily minimum, maximum and mean value of the cooling or heating load. |
| Outside temp. °C (Ø, min., max.) | Daily minimum, maximum and mean value of the outside temperature. |
| Target EWA W (Ø, max.) | Daily maximum and mean value of the internal load due to solar radiation on the external walls. |
| Target transm. W (Ø, max.) | Daily maximum and mean value of the internal load due to solar radiation through glass surfaces. |
| Target TRY hor. W (Ø, max.) | Daily maximum and mean value of the internal load due to solar radiation on horizontal surfaces. |
Free period results table
| Column | Description |
|---|---|
| Date | Date in TRY for which the respective values of the row were determined. |
| Time h | Hour in the diurnal variation for which the respective values of the line were determined. |
| Cooling load/heating load W | The cooling or heating load, calculated for the respective hour. |
| Cooling load/heating load dr. W | The dry cooling or heating load, calculated for the respective hour. |
| Cooling/heating load, surface heating/cooling W | The cooling or heating load, calculated for the respective hour for surface temperature control. |
| Cooling load/heating load AHU W | The cooling or heating load for the air handling unit, calculated for the respective hour. |
| Outside temp. °C | The outside temperature, determined for the respective hour (taking into account the location and climate data). |
| Machines W | The total balance of the internal load due to machines, calculated for the hour in question. |
| Persons W | The total balance of the internal load due to persons, calculated for the hour in question. |
| Lighting W | The total balance of the internal load due to lighting, calculated for the hour in question. |
| Infiltration W | The total balance of internal load due to infiltration, calculated for the given hour. |
| Material throughput W | The total balance of internal load due to material throughput, calculated for the given hour. |
| Target EWA W | The total balance of the internal load due to solar radiation on the external walls, calculated for the respective hour. |
| Target transm. W | The total balance of the internal load due to solar radiation through glass surfaces, calculated for the respective hour. |
| Convective proportion | Proportion of the internal load that is discharged directly into the air. |
