Details on Result Annual Simulation, Room - Temperatures

Information on the Temperatures tab in the Year simulation results, Room dialog.

You are here:

Module selectionDynamic cooling loadRoom levelYear simulation results, roomTemperatures

Results annual simulation temperatures Room Linear Building

Diagram

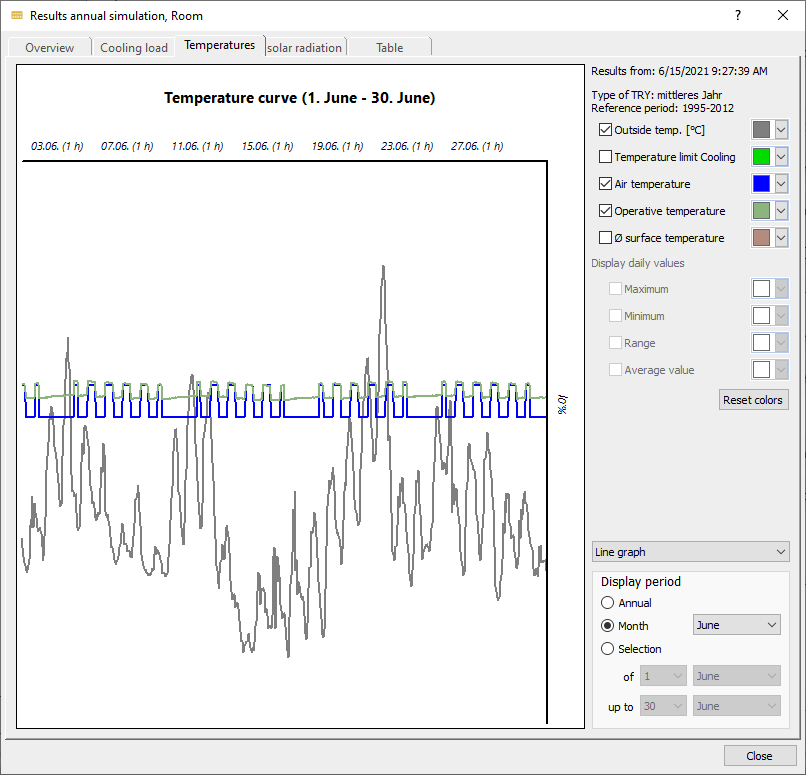

The diagram shows the temperatures resulting from the year simulation for this room, taking into account the settings from the location and climate data. You can also display the temperature limits from the assigned temperature profiles.

Options

The time of the calculation is displayed, as well as the type of test reference year (provided that this information is available in the referenced file), and the reference period.

You can adjust the color of each curve as needed. Clicking Reset colors restores the default color.

You can choose from the following options for displaying the diagram:

  • Bar chart

  • Line diagram

  • Points with lines

Display period

The time frame for the display in the diagram. You can choose either the whole year, a specific month or a manually defined time frame for display in the diagram.
