Details on Results Annual Simulation, Room - Cooling Load
Information on the Cooling load tab in the Year simulation results, room dialog.
You are here:
Diagram

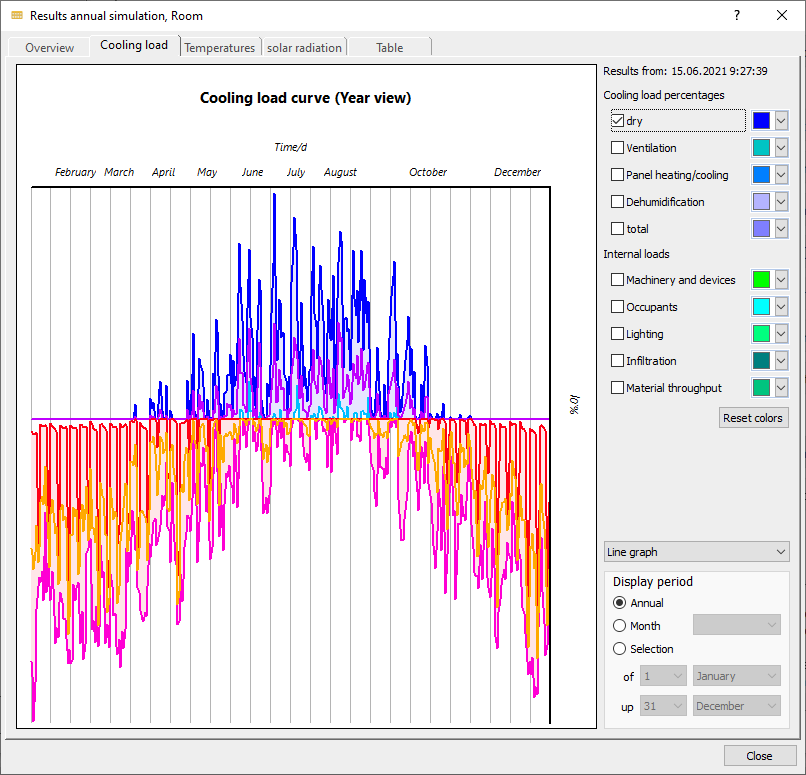

The diagram shows the load curve resulting from the year simulation with the selected options over the selected display period for this room.
Cooling load components
You can select which components of the cooling load you want to display in the diagram. The display color can be adjusted for each curve.
Internal loads
You can select which of the internal loads should be displayed in the diagram. The display color can be adjusted for each curve.
Reset colors: Restores the default colors for all displayable curves.
You can choose from the following options for displaying the diagram:
-
Bar chart
-
Line diagram
-
Points with lines
Display period
The time frame for the display in the diagram. You can choose either the whole year, a specific month or a manually defined time frame for display in the diagram.
