Details on Results, Room – Humidity Balance

Information on the Humidity balance tab in the dynamic cooling load calculation results at building level.

This tab is displayed if the humidity balance has been activated in the settings at project or room level.

You are here:

Module overview ➤ Cooling load dynamic ➤ Room level ➤ Result, cooling load dimensioning ➤ Humidity balance

Results cooling load dimensioning Linear Building

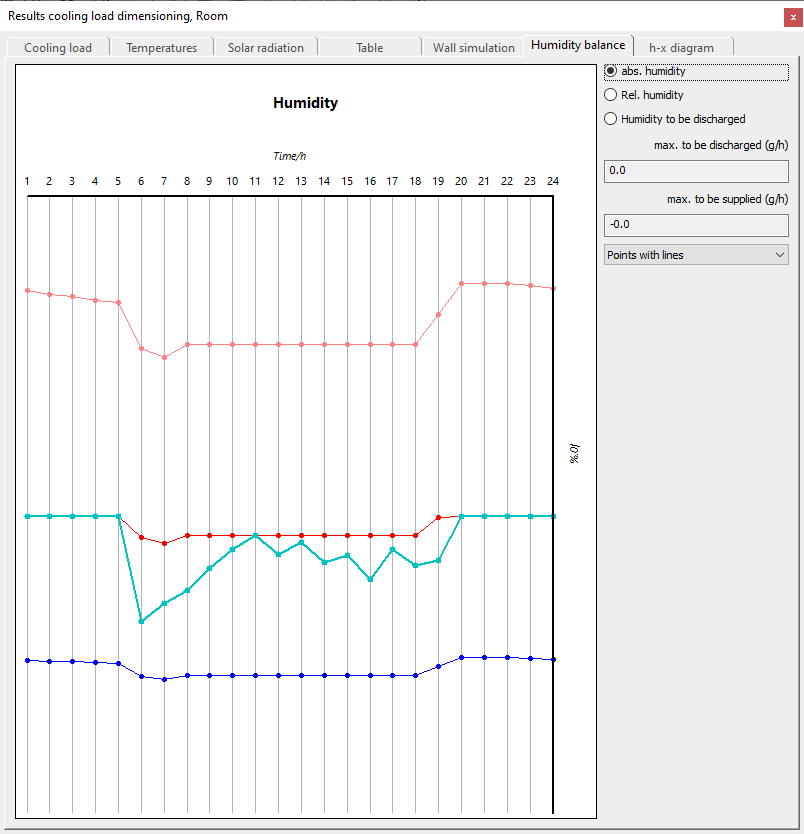

Diagram

Shows the absolute, relative or maximum humidity to be supplied or discharged for the current room, depending on the selected option.

Options

dist. Humidity – activated: Displays the absolute humidity during the course of the day in grams per hour in the diagram.

rel. humidity – activated: Displays the relative humidity during the course of the day in percent in the diagram.

Humidity to be discharged – activated: Displays the maximum humidity to be discharged and the maximum humidity to be supplied during the course of the day in the diagram.

Diagram type

You can select the following view types for the display:

  • Bar diagram

  • Line diagram

  • Points with lines
