Details on Results, Building – h,x, Diagram

Information on the h-x diagram tab in the dynamic cooling load calculation results at building level.

You are here:

Module overview ➤ Cooling load dynamic ➤ Result, Cooling load dimansioning ➤ h,w diagram

Results cooling load dimensioning Linear Building

Diagram

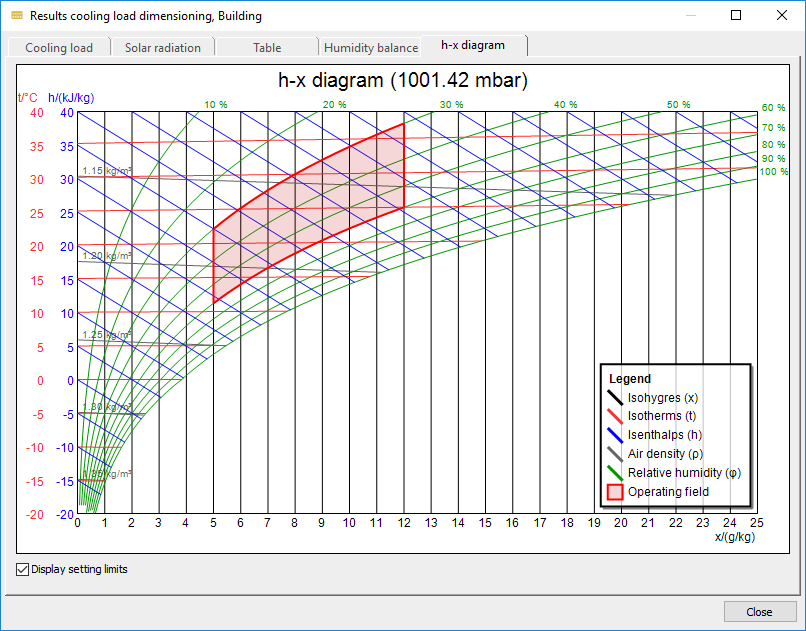

Display of a Mollier-h-x diagram with optional marking of the operating field.

Display setting limits

Enabled: Marks the comfort zone that was specified in the options by lower and upper limits of absolute and relative humidity in the diagram.
