Details on Results, Building – Humidity Balance
Information on the Humidity balance tab in the dynamic cooling load calculation results at building level.
This tab is displayed if the humidity balance has been activated in the settings at project or room level.
You are here:

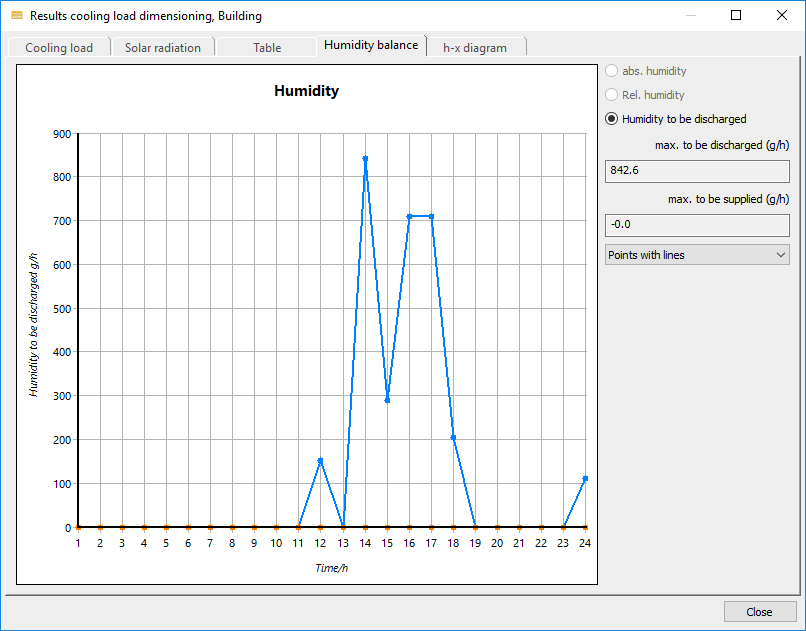

Diagram
Displays the maximum humidity to be discharged and the maximum humidity to be supplied in grams per hour for the entire building.
Options
The options abs. humidity and rel. humidity are available at room level.
Humidity to be discharged – activated: Displays the maximum humidity to be discharged and the maximum humidity to be supplied during the course of the day in grams per hour in the diagram.
Diagram type
You can select the following view types for the display:
-
Bar diagram
-
Line diagram
-
Points with lines
