Details on humidity balance in the settings
Information on the Humidity balance tab in the Settings dialog of the dynamic cooling load calculation.
A humidity balance can be calculated for the design of the cooling system. Humidity enters the rooms through persons, appliances, material throughput and outside air that comes in. In connection with the dew point temperatures from the climate data and the determination of a comfort field (limit values for relative and absolute humidity), the humidity balance is created.
You are here:

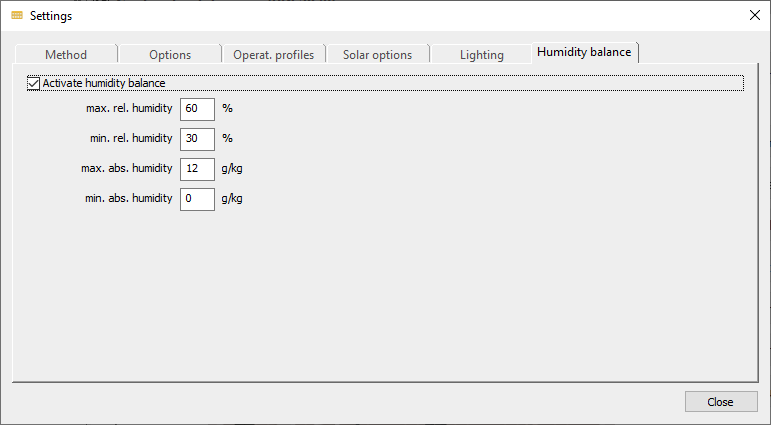

Activate humidity balance
Enabled: The humidity balance is calculated taking into account the specified parameters and is available in the output. You can also enter different limit values for relative and absolute humidity in the individual rooms.
You can globally specify maximum and minimum values for relative and absolute humidity.
