Details on proportion profiles

Information on the Proportion profiles dialog in the dynamic cooling load calculation.

You are here:

Module overview ➤ Dynamic cooling load ➤ Project level ➤ Settings ➤ Options ➤ (Convective proportion of the residual cooling system) - calculator symbol

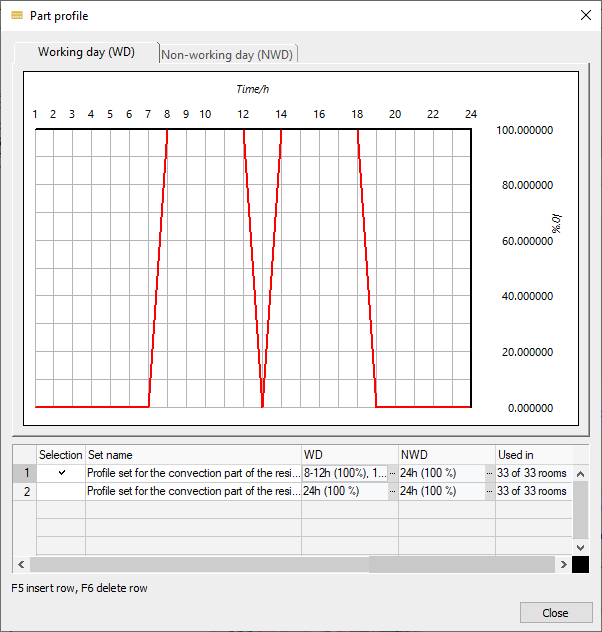

Working profiles work day Linear Building

Diagram

In the diagram, the percentage utilization of the proportion profile set that was last selected in the table is displayed for the working days (WD) or for the non-working days (NWD).

Table

Selection - activated: This profile set is used to separate the convective proportion of the system.

Set name

Name of the proportion profile set. You can edit the name by clicking in the field. F5 or clicking in an empty line creates a new set. F6 deletes the selected set.

WD

Displays the set parameters of the profile for the working day. Clicking opens the corresponding profile.

NWD

Displays the set parameters of the profile for the non-working day. Clicking opens the corresponding profile.

Used in

Indicates in how many rooms of the building structure the selected usage profile set is used.
