Changing Multiple Systems Simultaneously
Shows step-by-step how to assign a different panel heating/cooling systems to multiple rooms in one step.
Before you begin
You would like to assign a different panel heating/cooling system to multiple rooms at the same time.
The example shows the general procedure at the project level. You can also perform the procedure at the building section, storey or apartment level in the corresponding optimization areas.
Requirements:
-
You have several rooms in your project that are designed with panel heating/cooling systems.
-
You have already accepted the system for assignment in System preselection.
Navigate to:
Applies to: Panel heating, Panel cooling
Procedure

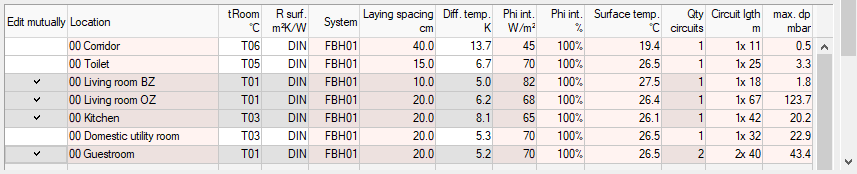

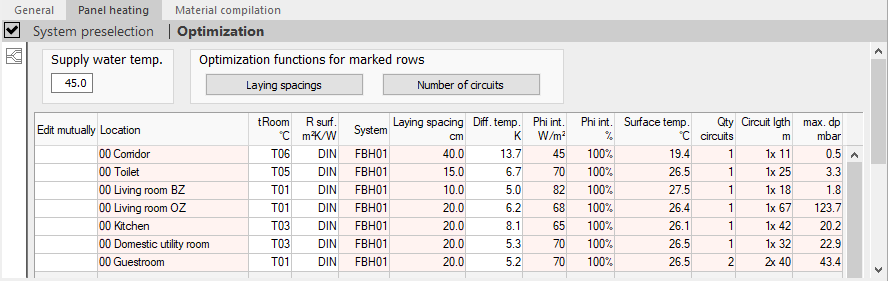

- Highlight the zones of the rooms where the system is to be changed with a Click in the field of the Edit mutually column. Tip:
Click the Edit mutually column headline to select all lines or to deselect all lines.
- In the System column, double-click a System on a line marked with a checkmark.

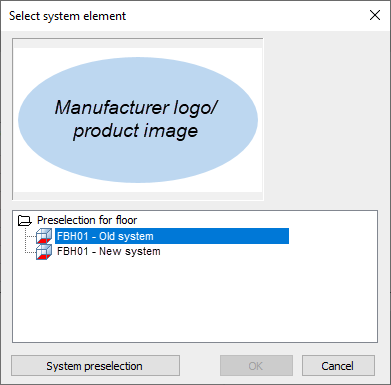

The Select system element dialog opens.
- Select the new system and confirm with OK.
Results
You have assigned the new panel heating/cooling system to the marked rows.
