Details on Pipe Run View
Information on the Pipe run view section.
You are here:
Applies to: Radiators, cooling convectors, panel heating, panel cooling and domestic ventilation.

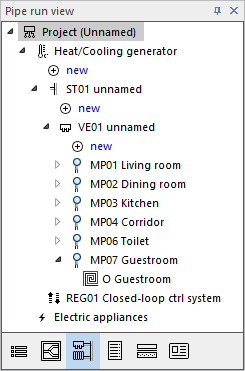

Pipe run view
All heat/cooling generators or central units, pipe runs, manifolds, manifold connections, Tichelmann connections if applicable, radiators, cooling convectors, circuit zones of panel heating/cooling and their feed pipes, dummy covers as well as connection options for electrical appliances are shown. You can add new components or component groups and move these simply by dragging and dropping. The selection of parts and part groups you can add depends on the level of the
button in the pipe run view. A right mouse click opens the context menu that allows you to cut, copy, paste and delete elements. The pipe run view is only available if one of the modules Radiators, Cooling convectors, Panel heating, Panel cooling or Domestic ventilation is activated.
| Symbol | Description |
|---|---|
|
| Project |
|
| Heat/cooling generators |
|
| Add new component or component group |
|
| Pipe Run |
|
| One-pipe run |
|
| Manifold |
|
| Manifold port |
|
| Tichelmann connector |
|
| Feed pipe |
|
| Heat-/Cooling circuit |
|
| Occupied zone |
|
| Control |
|
| Electric appliances |
|
| Central ventilation device |
|
| Supply air |
|
| Extract air |
|
| Dummy cover |
,
Panel heating/cooling pipe run view
In the panel heating modules, the hydraulic arrangement of the individual circuit zones is shown and, if applicable, the feed pipes of the circuits to the manifold connections or Tichelmann connections. For circuits with multiple circuit zones, you can also connect the zones in series or integrated in parallel.
If several Tichelmann connections are available, they can be connected in series using drag-and-drop. To do this, grab the desired connection with the mouse and drag it to the Tichelmann connection that is to be connected upstream.
| Integrated series circuit | Integrated parallel circuit |
|---|---|
|
|
|
