Details on New System Component

Information on the New system component dialog of the Master tables in panel heating/cooling.

Allows the addition of systems and pipes in the System components heating/cooling section in the Master tables. These are then listed in the tree structure of the Master tables with the corresponding manufacturer and system group.

You are here:

Module overview ➤ Panel heating/Panel cooling ➤ Master tables ➤ Components, U-value calculation ➤ System components Heating/Cooling ➤ + new

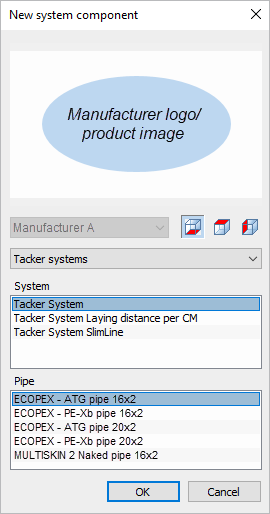

Dialog system component Linear Building

Based on the selection of the room position of the system component , the manufacturer and the system group, systems and pipes can be added to System components heating/cooling.

Not all manufacturers have stored wall and ceiling systems. The selection of system groups depends on the manufacturer. The selection of systems depends on the system group and the selection of pipes depends on the system.

If required lists or fields of the dialog are deactivated, the dialog has to be closed and reopened by clicking the button in a higher level of the Master tables.
