Detail on Select Insulation Variant

Information on the Select insulation variant dialog in panel heating/cooling.

Defines the insulation variant and system-dependent insulation options for a selected panel system.

You are here:

Module overview ➤ Panel heating/Panel cooling ➤ Storey level/Apartment level/Room level ➤ Storey overview + quick dimensioning/Apartment overview + quick dimensioning ➤ (Column R Insulation, m²K/ W) ...

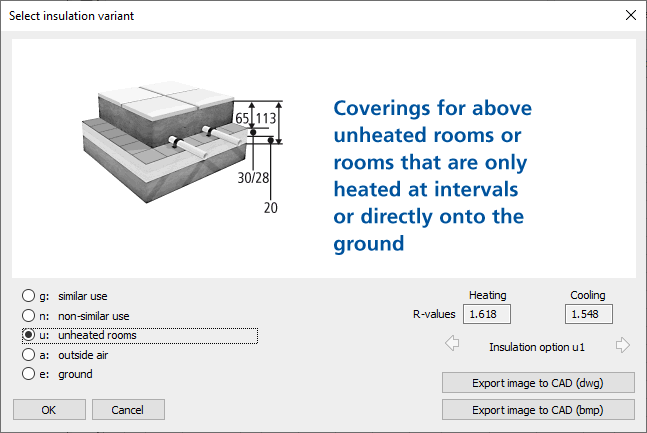

Select insulation variant Linear Building

The decisive factor is the type of use of the panel heating of the adjacent room or the nature of the adjacent material selected on the left side. According to the selection, the corresponding R-value according to the standard is adopted and used for the calculation.

R-value

Shows the heat transfer coefficient of the selected insulation variant or insulation option for the heating or cooling case.

Insulation option (...)

Depending on the system, the manufacturer specifies different construction versions for one type of use. In this case, the buttons to select the different insulation options are activated.

Export image to CAD (dwg) If the manufacturer has stored a drawing for the insulation variant or insulation option, you can export it to the CAD program and position it at the desired location.

Export image to CAD (bmp) If the manufacturer has stored an image for the insulation variant or insulation option, you can export it to the CAD program and position it at the desired location.
