Showing Software Protection on the Network

Shows step-by-step how to verify that the license server displays software protection on the network.

Before you begin

The software protection is not found and you would like to check whether the license server displays the software protection or not.

Requirement:

All the points mentioned on the Prerequisites for installing software protection page are taken into account.

Navigate to:

Tip:

You can also connect to the ACC without LINEAR Admin directly through your web browser. Open the page http://localhost:1947 in your web browser.

LINEAR Admin ➤ Hasp Tools ➤ Control Center

Procedure

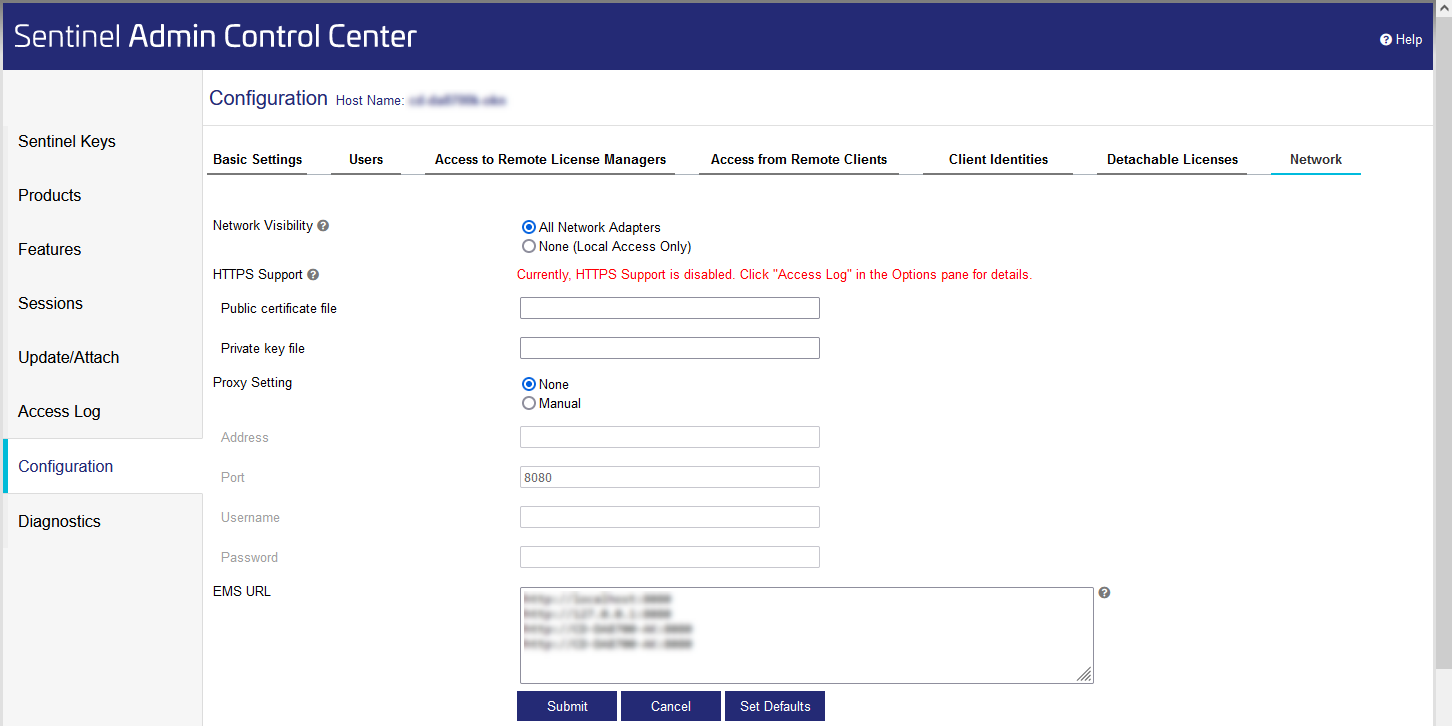

  1. In the Navigation bar, click Configuration.
  2. Go to the Network tab.
  3. Check if the All Network Adapters option is activated under the Network Visibility point.
  4. If necessary, activate the All Network Adapters option and click Submit.

Results

The server displays the software protection in the network.
