Details on Manifold - Data (2D Piping)

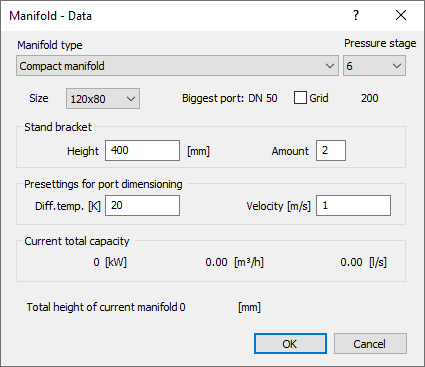

Details on the Manifold - Data under Piping.
You are here:
Manifold type: Select a manifold type from the drop-down list.
Pressure stage: Select a pressure stage for the set manifold.
Size: Select the size of the compact manifold.
Biggest port: Defines the nominal diameter of largest port.
Grid - activated: The given grid is used.
Standing brackets: Enter the height and the number of the standing brackets.
Presettings for port dimensioning: Set the Differential temperature [K] and the Velocity [m/s] as default.
Current total capacity: This area displays the calculated total capacity of the manifold.
Total height of current manifold: This area displays the calculated total height of the manifold.
