Details on Flange Profile (Air Duct)

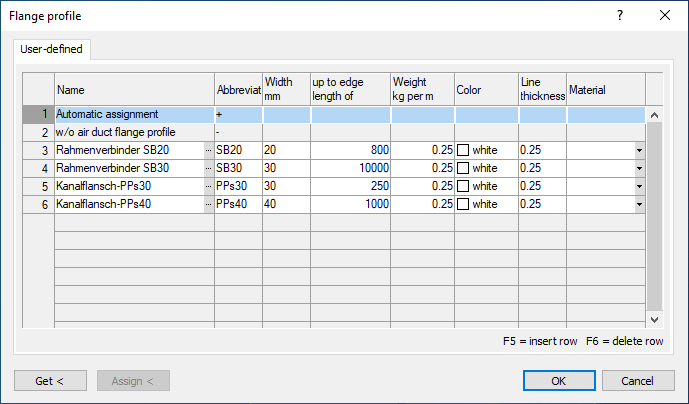

Information about the Air duct flange profile dialog for 3D air duct construction.

Flange profiles create the connection between ducts, fittings and built-in parts. In this dialog you can select manufacturer profiles or enter your own profiles and change profiles of already drawn air ducts. Manufacturer profiles are only available if a suitable data set has been installed.

If you select Automatic assignment, specify up to which edge length the connectors are to be used.

Tip:

You can also change the connector to be used while drawing ducts by calling the context menu with the right mouse button, selecting Properties and setting the profile in the Flange profile section.

You are here:

Assistants3D Air DuctAir duct constructionAir duct flange profile ...

Flange profile table

Column

Description

Name

Shows the name of the profile and allows you to specify a name for custom profiles.

Abbreviation

Shows the abbreviation of the profile and allows you to specify an abbreviation for custom profiles.

Width mm

Shows the width of the profile and allows you to specify a width for custom profiles.

up to edge length of

Indicates up to which edge length the connector is used and allows you to specify a dimension for custom connectors.

Weight kg per m

Displays the weight of the profile per meter, if this value is stored in the data set, and allows you to specify a value for user-defined profiles.

Color

Shows the display color of the profile in the drawing and allows you to specify a color for user-defined profiles. Double-clicking in the field opens the Select Color dialog, where you can specify a color in various ways.

Line thickness

Displays the line thickness of the profile in the drawing and allows you to specify a line thickness for custom profiles.

Material

Displays the material of the profile, if it is stored in the data set, and allows you to specify a material for user-defined profiles.

Get <, Assign <

Get <

With this button you have the possibility to pick component information from already drawn profiles.

Assign

With this button you have the possibility to change profiles of already drawn air ducts. Once you select a profile in the table, the button will be activated. You can also assign the settings Automatic assignment and w/o air duct flange profile. With Automatic assignment, the air duct flange profiles included in the table are automatically assigned based on the edge lengths of the duct.
