Details on Options

Information about the dialog Options in scheme generator for the trade Heating.

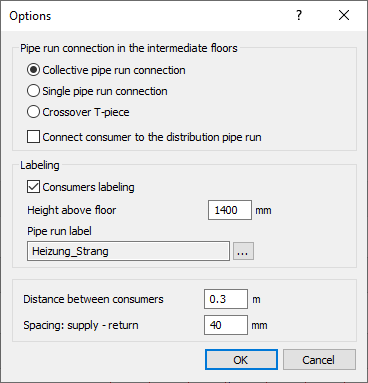

Clicking the Options button opens the dialog of the same name, where you can make general presettings for the schema construction. The settings apply to the whole project.

You are here:

AssistantsHeating / Scheme planning HeatingProject setupScheme generator, Heating ...Options...

Pipe run connection in the intermediate floors

Defines how the pipes are connected to the pipe run.

Type of pipe run connection Construction in drawn scheme
Collected pipe run connection
Single pipe run connection
Connection with Crossover T-piece

Labeling

Specifies the labeling parameters for the pipe runs.

Label consumer

Enabled: The consumers are labeled.

Height above floor

Sets the vertical position of the label in the scheme.

Pipe run label

: Opens the Show pipe run label dialog, which allows you to specify the label to use. You find the provided label files in the following directory: C:\Program Files (x86)\LINEAR Software\Solutions xx\CAD\ TGA Desktop\User-standards\Labels.

Distance between consumers

Sets the clear distance between the consumers in the scheme.

Distance Supply water - Return water

Determines the distance between the supply and return pipes in the scheme.
