Details on Connect Radiator

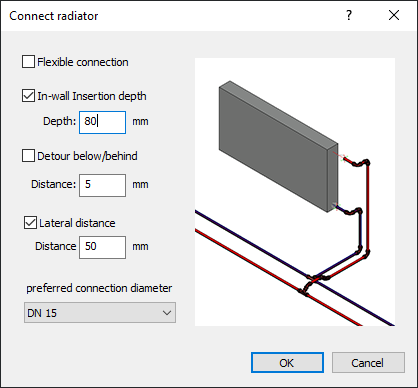

Information about the Connect radiator dialog in the Draw section of the 3D Pipe construction.
You are here:
Flexible connection – activated: The radiator is connected with a flexible pipe when the command is executed. Fittings are then not installed when the direction is changed.
Detour below/behind: activated - The pipe offset is routed under the rear pipe.
Lateral distance – activated: The specified distance is included as the lateral distance.
preferred connection diameter: Select a preferred nominal connection diameter for the pipe offset to be created from the drop-down list.
