Details on the Component Selection Dialog

Information about the Component selection dialog in the Pipe Construction section.

This function allows you to insert fittings from the available manufacturer catalogs into an existing pipe.

You are here:

AssistantsTrade / 3D PipingPipes3D Pipe ConstructionDrawInsert valve

Filter

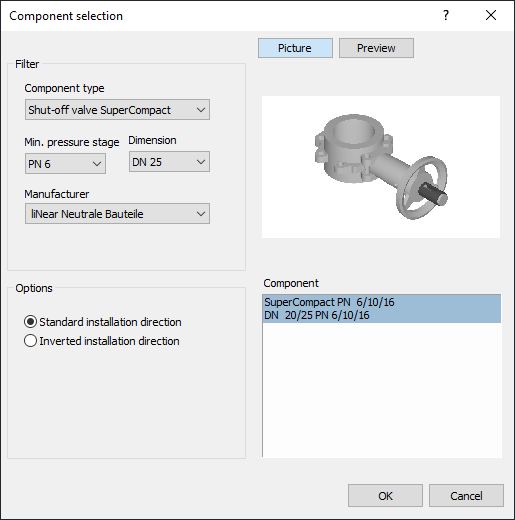

Component type: Select the valve type from the drop-down list. A wide range of component types is available for pipe construction.

Min. pressure stage: Select the minimum pressure level for the part.

Dimension: Determine the nominal size of the component via the drop-down list.

Manufacturer: Select a manufacturer for the component to be used.

Options

Use the options to select whether the selected component is to be drawn in the Standard installation direction or in the Inverted installation direction.

Picture, Preview: If you select Picture, a general image of the component will be displayed in the window below the buttons. If you select Preview, a preview of the part will be displayed as it will appear in the drawing.
