Details on Hygiene Assistant

Information about the Hygiene assistant dialog.

The prerequisite for using the Hygiene assistant is the installation of a a suitable manufacturer data set.

You are here:

AssistantsPotable water / Drawing typeSymbolsHygiene assistant ...

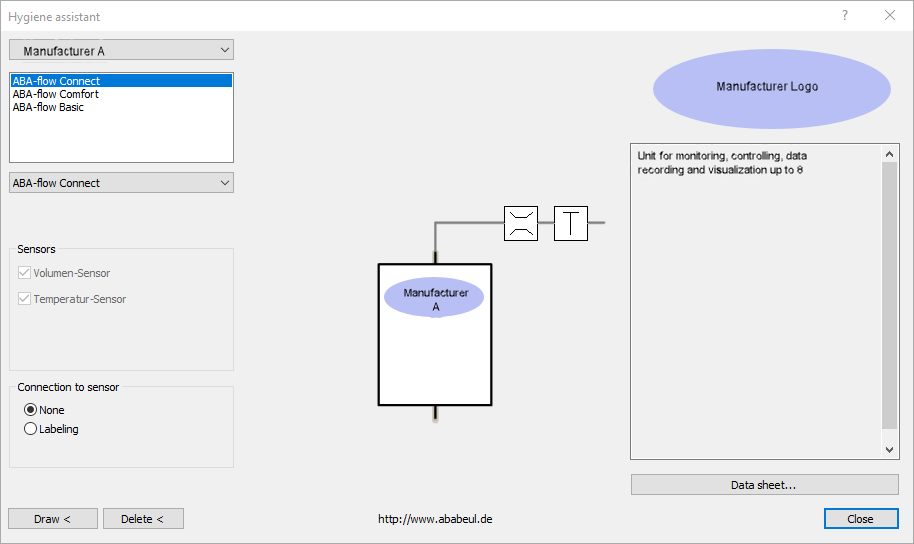

Drop-down lists Manufacturer / Model

Using the drop-down list at the top left of the dialog, you can select a manufacturer, and in the list below it a corresponding installed manufacturer data set. Depending on the selected manufacturer and model, different options for the structure are displayed. In another drop-down list you can select variants of the model selected in the list.

Sensors

Select whether a Volume sensor and/or a Temperature sensor should be activated for the hygiene device.

Connection to sensor

Select a connection type to the sensor. None, Labeling or Control cable.

Draw <

Click the Draw < button and follow the instructions in the command line. The drawing process depends on which circuit and which additional components have been selected.

Data sheet...

Click the Data sheet... button to call up any existing data sheets of the manufacturers.
