Details on Automatic Fixing for Siphonic Drainage Systems

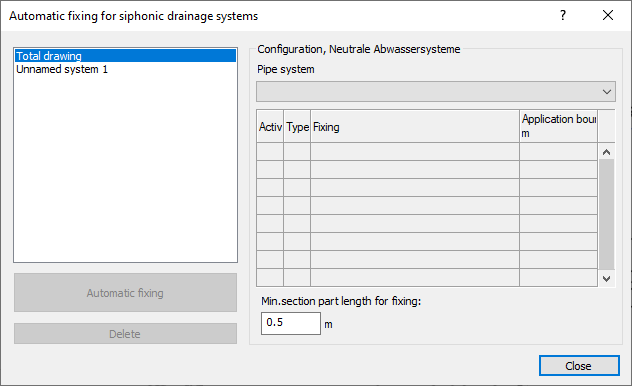

Information about the Automatic fixing for siphonic drainage systems dialog.

Calculated Siphonic drainage network can be automatically provided with fixing elements if suitable pipe material is used. Calculate the siphonic drainage pipe network with LINEAR Analyse Waste Water. Select a suitable pipe material in the pipe Tables beforehand. Not all materials support the Automatic fixing command.

You are here:

AssistantsSiphonic drainage / 2D Scheme planning/3D planningSymbolsAutomatic fixing

Selection Drawing / Systems

If multiple systems are included in a drawing, select whether automatic fixing should take place in the entire drawing or only in a specific system.

Automatic fixing

This button starts the placement of the elements for automatic fixing.

Delete

Deletes the selected element from the list.

Pipe system

Use the drop-down list to select the pipe system of the preset manufacturer.

Table - Active / Type / Fixing / Application boundaries m

In this table you will find the pipe systems available from the manufacturer. Check the boxes of the pipe types for which the automatic fixing is to be performed. You can also specify the length from which a pipe should be provided with fixings.

Min. section part length for fixing

In this field, you can also specify the length from which a pipe is to be provided with fixings.
