Details on Technical Data for Circulation Valves

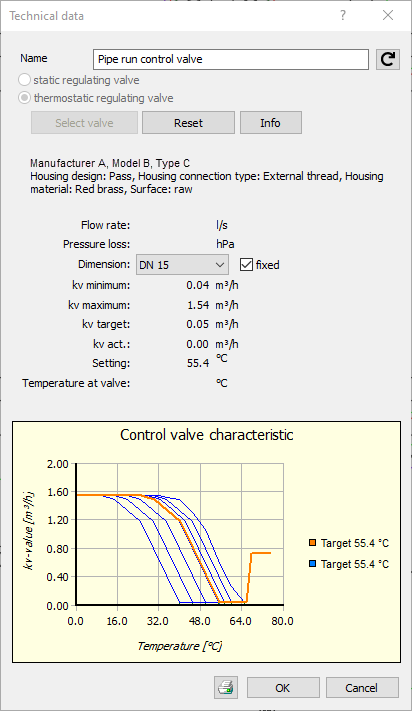

Information on the dialog for technical data for the circulation valve.

Select here whether to use a static or a thermostatic regulating valve. Then select a valve from the global preselection. Now the data pertaining to the valve as well as the current characteristic curve diagram will be displayed according to the set dimension. You may additionally print the diagram via the button.

You are here:

AssistantsPotable water / Drawing typeCalculationCalculationComponentsTechnical data <Component selection

Name

Specifies the name of the component. You can modify the name. Clicking restores the default setting.

Select valve

Opens the Select valve dialog where you may take over a valve from the general preselection. After your selection of the manufacturer in the first column, all available Type or model series of this particular manufacturer will be listed. You may now select the requested series in order to be enabled to choose a particular valve from a list of individual valves in the Building type section.

Reset

After clicking this button, the most suitable valve from the valve preselection is dimensioned for the network and, if necessary, a valve series defined manually (with the Select valve command) is reset.

Info

opens the respective valve information dialog. Here, the characteristic curve diagram will be displayed according to the dimension, which you may print by clicking .
