Details on Components

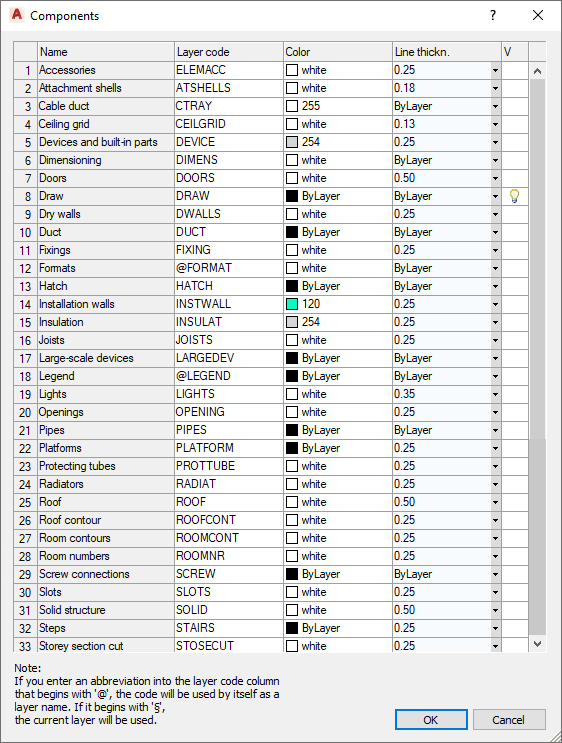

Information about the Components dialog under Project setup.

In the program, drawing elements are created that have specific functions, e.g. radiators, windows, insulation, duct, etc. These elements are designed on fixed component layers. The attributes for the available components, e.g. colors and line thicknesses of the layers, are already defined and can be adjusted by you in the table. All settings you make here are saved in the current drawing. If you would like to change certain settings permanently, create a corresponding template file.

Note:

Changing the properties of components may affect certain program functions.

You are here:

AssistantsTrade / Drawing typeProject setupComponents...

Name

The displayed a names of the components depend on the loaded module.

Layer Code

In this column, simply click the appropriate field to enter or modify an abbreviation.

Color

Double-click in a field of this column to open the Select Color dialog. This dialog contains the Index Color, True Color and Color Books tabs. Each tab contains an extensive color palette from which you can select the desired color.

Line thickness

In this field, use to the button at the right edge of the field to open the list and select the desired value.

V (Visibility)

If the component has been used in the drawing, the light bulb icon appears in this column, which allows you to switch the layers on and off.
