Switch U-Value

Shows step-by-step how to swap U-values of components of this structural level within the activated structural level.

Before you begin

You want to exchange U-values for the activated structural level for selected components.

Requirements:

You are at the desired structure level.

Navigate to:

Module overview ➤ Module ➤ Building unit ➤ Toolbar

Procedure

  1. Click in the toolbar.

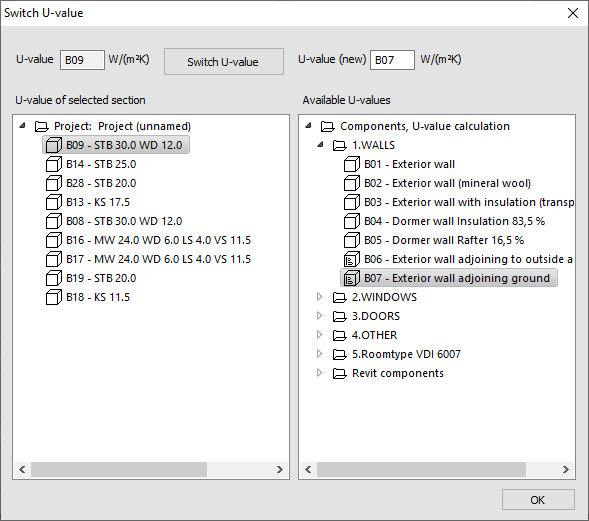

    The Switch U-value dialog opens.

  2. Select the component whose U-value you want to swap under U-values of the selected section.
  3. Select the component whose U-value you want to use for the exchange under Available U-values.
  4. Click Switch U-value.

Results

The selected component has the newly assigned U-value in the activated structural level.
