Details on Configuration - 3D Construction (General)

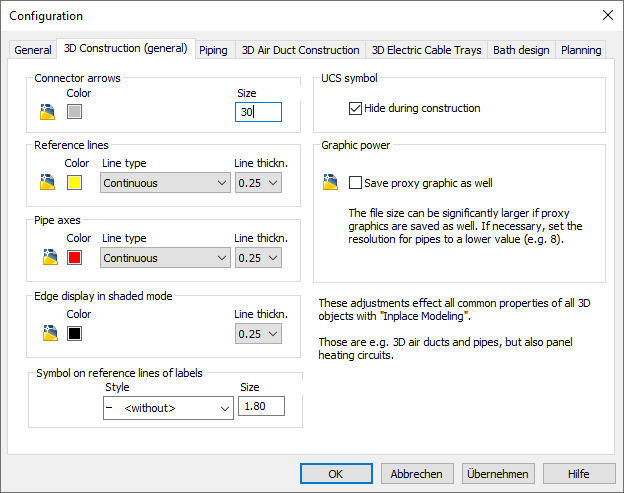

Information about the 3D Construction (general) tab in the LINEARConfiguration.
The adjustments made here affect 3D objects with "Inplace Modeling", i.e. 3D air ducts, 3D pipes, but also panel heating circuits.
You are here:
Connector arrows, Reference lines, Pipe axes, Edge display by shaded mode
Select the colors, line types and sizes or line thicknesses of the construction aids.
Symbol on reference lines of labels
Set the style and size of the arrowheads for the labeling.
UCS symbol
You can make the UCS symbol, which is usually hidden during construction, visible by removing the check mark.
Graphic power
Save proxy graphic as well
Proxy graphics are objects created with a program that is not available on the current computer. These objects can be displayed and plotted using other CAD-based software. If you save proxy graphics as well, this can significantly increase the size of the file. You can deactivate the co-saving of proxy graphics.
