Details on the Daily Cycle of Outside Temperature
Information about the Daily cycle of the outside temperature dialog for in the Configuration for the short procedure of the cooling load.
You are here:

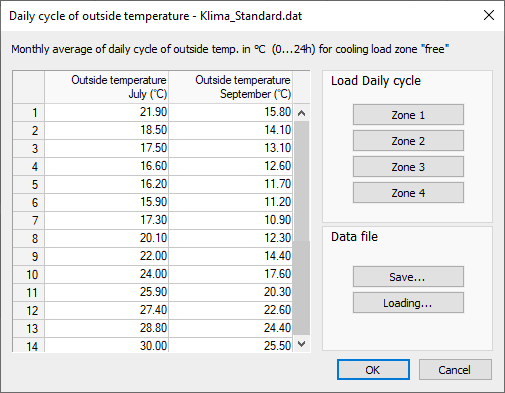

Table
If necessary, you can adjust the averaged daily variation of outside air temperatures for both calculation months in this table.
Load diurnal variation
The buttons Zone 1 to Zone 4 fill the table with the respective values from VDI 2078. The current configuration can be saved before.
File
Save...: Saves the current configuration of the table in DAT format. Use an own file name in order to not overwrite the default configuration.
Load...: Loads a configuration saved in DAT format.
