Optimizing the Dimensioning of a Room

Shows step-by-step how to optimize the dimensioning of a room.

Before you begin

You wish to optimize the design of a room, because the completed design is not ideal or because parameters have been changed.

In the example, the general procedure is shown using the Laying spacing optimizing (LS + DT). You can carry out the procedure equally well with the Differential temperature optimizing (DT) and Circuit number optimizing (CQ + LS + DT).

Requirement:

The design of a room is not ideal.

Navigate to:

Module overview ➤ Panel heating/Panel cooling ➤ Building Structure ➤ Room level

Applies to: Panel heating, Panel cooling

Procedure

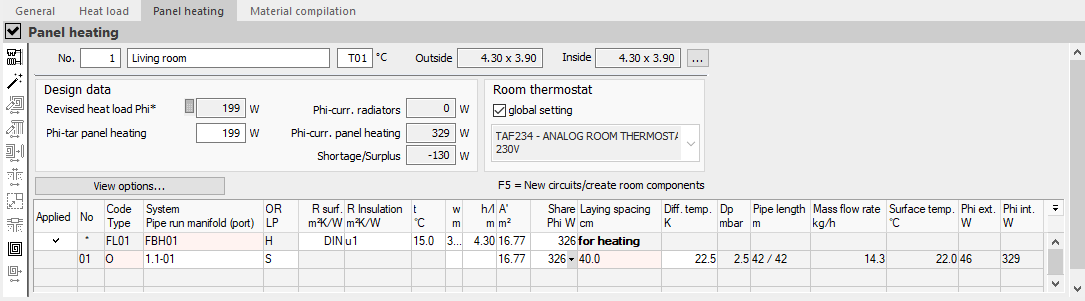

Click Optimize.

The following context menu opens.
Select the desired optimization function.

Results

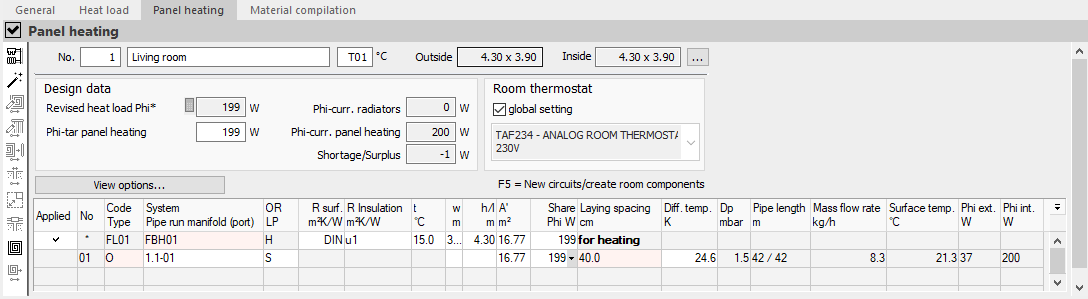

You have optimized the room’s circuit zones.
