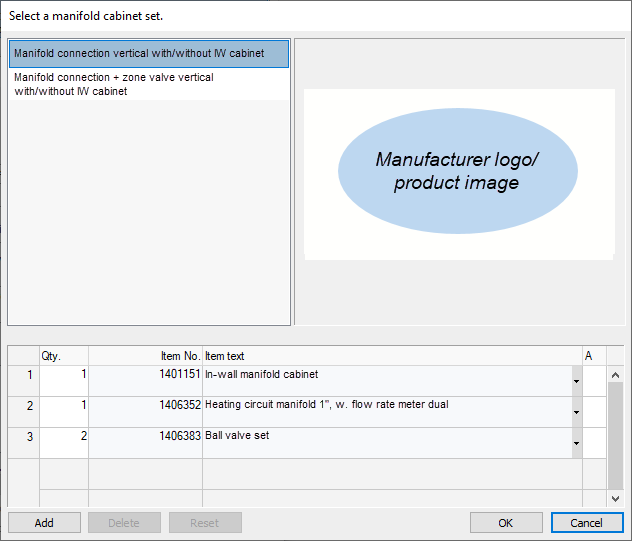

Details on Select a Manifold Cabinet Set

Information on the Select a manifold cabinet set dialog.

Shows the available manifold cabinet sets of the selected system. Depending on the manufacturer and system you can choose between different variants. The article table shows the scope of delivery of the selected manifold cabinet set. You can modify the number of individual items, add new items, cancel items and mark items as alternative items.

You are here:

Module overview ➤ Panel heating/Panel cooling ➤ Building structure ➤ Project level ➤ Panel heating/Panel cooling ➤ System preselection ➤ System parameters.... ➤ (Manifold cabinet set)...

Item table

Column

Description

Qty.

Shows the quantity of the item.

Item No.

Shows the item number of the item.

Item text

Shows the item description.

The button opens a system-dependent drop-down list where you can select between variants of the manifold cabinet set.

A

With a checkmark in column A you mark an item as alternative item.

Add: Opens the Item selection dialog, here you can add more items of the manufacturer to the item table. Added items are displayed in bold in the item table. If the button is deactivated, no further items from the manufacturer are stored.

Delete: Deletes added items from the item table.

Reset: Restores the default setting.
