Details on Product data

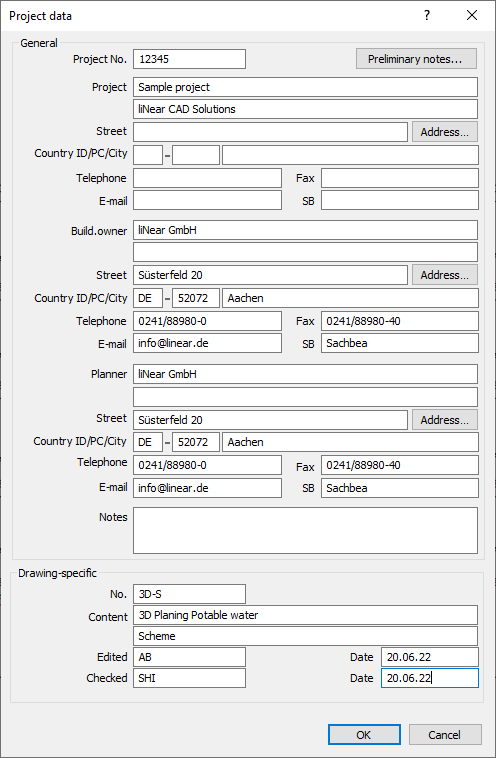

Information about the Project data dialog.

You are here:

AssistantsTrade / Drawing typeCalculationOutputProject data...

Text fields

Enter the desired project data. The Preliminary Notes button opens the Select Preliminary Notes dialog where you can create and select preliminary notes for your final printout. Clicking Address opens the LINEAR address database, where you can select address data that will then be applied to the project data and printout. All data are saved in the project and are available in later sessions.

Note:

Select the print item General so that the entered data appear in the output.
