Details on Create Installation Plan .../ Assembly Layout Configurations

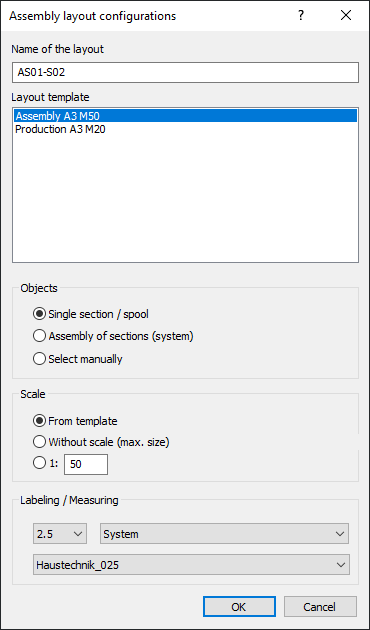

Information about the Create Installation plan command and the corresponding Assembly layout configuration dialog under Output.

Once the system has been divided into spools and assemblies and positioned, installation plans for the spools and assemblies can be created.

You are here:

AssistantsTrade / 3D PipingOutputCreate installation plan ...

Name of the layout

Enter a name for the layout.

Layout template

Select an layout template from the list.

Objects

Select if a Single Section / Spool, Assembly of selection (system) or Manual selection should be used to create the assembly layout.

Scale

Select if the scale for the assembly layout From template should be used or if Without scale (max size) should be created. You can also enter the scale manually.

Labeling / Measuring

Select the presettings for labeling and dimensioning from the drop-down lists.
