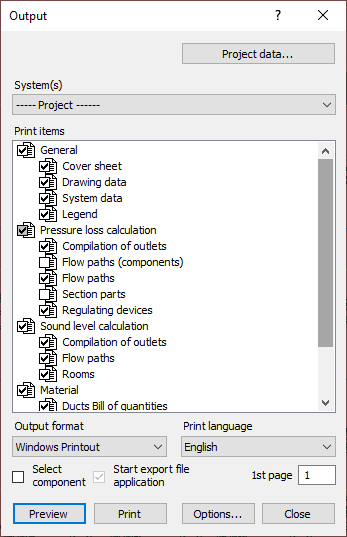

Details on Output (Dialog)

Information about the Output dialog.

You are here:

AssistantsTrade / Drawing typeCalculationOutput

Project data...

Opens the Project data dialog, in which you can enter project-relevant data for the printout.

System(s) and Print items

System(s)

Defines the systems whose calculations and material lists you want to print.

Note:

In Trade Ventilation the you can choose between the printout of all systems of the project, the printout of system pairs and the printout of single systems. A system pair consists of a supply and an outside air system or an exhaust and an escaping air system, each connected by a fan. If you select a ventilator as the system to be printed, the program prints the print topics for the corresponding system pair.

In addition, in Trade Ventilation you can assign the same name to multiple systems, e.g. to all fans of the same central unit. If you then select this ventilator as the system to be printed, you will receive a printout of all systems of the associated central unit. Material and measurements are printed in a common list and not separately for each system.

Print items

Specifies the information you want to output. Right-clicking a print items opens a context menu where you can open the underlying print layout for editing in the print layout editor.

Print options

Element

Function

Output format

When you select Windows-Printout, the Preview and Print buttons are activated. For all other formats the Export to one of the following formats is available:

  • ASCII

  • Excel (material only)

  • ASD

  • UGS

  • GAEB

Print language

If necessary, select the print language deviating from the user interface language.

Select components

Activated: Before printing, you can select the components to be printed in the parts list.

Deactivated: All components of the selected system are included in the printout.

Start export file application

Activated: After export, depending on the selection in the Output format field, opens the application set under Windows for editing the output file (e.g. Microsoft Excel for files with the extension *.xslx).

1. Page

Specifies the number of the first page of the output.

Preview

Opens a preview of the printout.

Print/Export

Prints or exports the selected print items with the settings made.

Options

Opens the Print options dialog in which you can specify the editor for ACSII output. The Windows editor is used by default.
